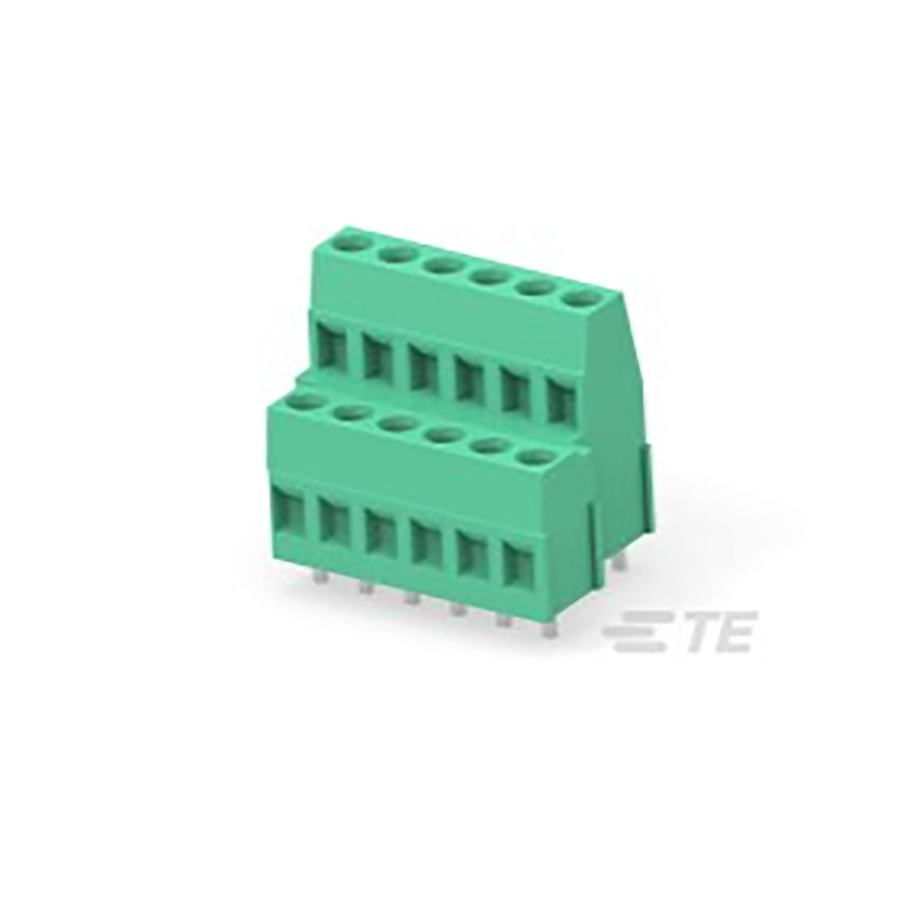

796692-6
Manufacturer:
TE Connectivity
Mfr.Part #:
796692-6
Datasheet:
Description:
Terminal Blocks Through Hole 6 5.08 mm 17.5 A 300 V 30 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5.08 mm |
| Current | 17.5 A |
| Current Rating | 17.5 A |
| Max Current Rating | 17.5 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 6 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Number of Contacts | 12 |
| ELV | Compliant |
| Connector Type | Receptacle |
| Thread Size | M3 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 3 |
| Number of Levels | 2 |
| Connector System | Wire-to-Board |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 12 AWG |
| Housing Color | Green |
| Plating | Brass, Tin |
| Tail Length | 3.81 mm |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 12 AWG |
Stock: 176
Distributors
pcbx
pcbxUnit Price$3.73604
Ext.Price$3.73604
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.73604 | $3.73604 |
| 10 | $3.72457 | $37.24570 |
| 25 | $3.71313 | $92.82825 |
| 50 | $3.70173 | $185.08650 |
| 100 | $3.69036 | $369.03600 |
| 300 | $3.67903 | $1103.70900 |
| 500 | $3.66765 | $1833.82500 |
| 1000 | $2.94780 | $2947.80000 |
